Energy Saving Dry Type Transformer Low Loss 22kV Single/Three Phase 10kV Input 220V 380V Distribution System

The non encapsulated coil three-phase dry-type power transformer is compacted and can go deep into load center.
lt has advanced design, reasonablestructure, beautiful appearance, and its main performance indicators are superior todomestic standards, such as partial discharge level, no-load loss, load loss, noise, and canadapt to high humidity environment.
lt can be installed in polluted and humid environmentnear lakes, seas and rivers, and in areas with high fire protection requirements and heavy loadIt is suitable for high-rise buildings, airports, stations, wharves, subways, hospitals, power plants,metallurgical industries, shopping centers. Densely populated areas and petrochemical, nuclearpower plants and other fields.

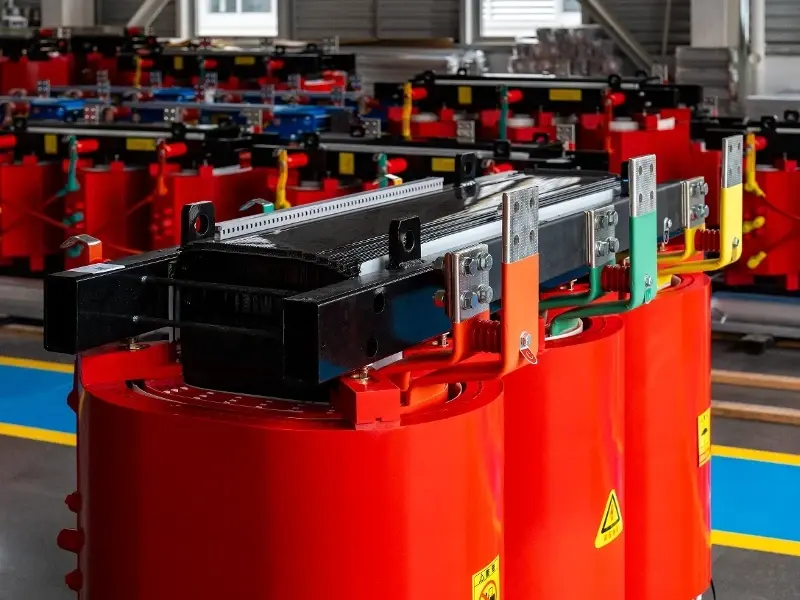

Dry type distributing transformer whose winding is sealed up with epoxy.

Customization options

DRY-TYPE TRANSFORMER

1. Safety

Dry type transformers do not contain any flammable or explosive liquids. This eliminates the risk of oil spills and
fires, making them an ideal choice for indoor installations such as commercial buildings, hospitals, and schools. The dry type transformer’s design ensures that it can operate safely even in harsh environments.

2. Environmental – friendliness

Since dry type transformers do not use oil, they have a much lower environmental impact compared to oil – filled transformers. There is no risk of soil or water pollution from oil leaks. The dry type transformer is a sustainable option for power distribution.

3. Low Maintenance

Dry type transformers require less maintenance than their oil – filled counterparts. There is no need to check and
replace the coolant regularly, and the absence of oil also means fewer potential leak points. This reduces the overall cost of ownership of the dry type transformer.

4. High Efficiency

Modern dry type transformers are designed with advanced materials and technologies to achieve high levels of efficiency. They can convert electrical energy with minimal losses, which helps to reduce energy consumption and save costs in the long run. The dry type transformer’s high – efficiency design makes it a cost – effective
solution for power distribution.

1.H-Grade Insulation SG10 Series power transformers use great material and new technology to achieve H-grade insulation, it is reliably used in ambient temperature up to 180ºCand the main part of the transformer can sustain up to 220ºC.

2. Safety SG10 series power transformers use insulated materials which is flame retardant and moisture-proof, the combustible material is only 10% of the epoxy resin transformer. There’s no poisonous fumes during long time burning at 800ºC.

3. Reliable SG10 series power transformers use special coil design and technology to achieve moisture-proof, mould proof and fame proof. It can sustain high thermal shock without partial discharge.

4. Strong over-load ability SG10 series power transformer can sustain 120% rated capacity. It can longtime running under IP23 without force air cooling.

Company Profile

Honggu Electric was established in 2019 with a registered capital of 50 million yuan. The factory covers an area of 20,000 square meters and is equipped with a complete set of automated high-precision production equipment including fully automatic winding,imported vacuum casting, and CNC processing. It has a large-scale professional production line with strong self-production capabilities. The enterprise has all necessary qualifications and possesses certifications such as CE (European Union export certification), PCCC (power certification), energy-saving certification, ISO three-system certification, CNAS (national accreditation laboratory testing), and multiple national patents. All products have passed national type tests and are produced strictly in accordance with national standards, conforming to international common electrical standards. The company mainly produces dry-type transformers, oil-immersed transformers, box-type transformers, and high and low voltage complete sets of equipment. The voltage specifications are fully covered and non-standard customization is supported. The products are energy-saving, low-consumption, fire-resistant, moisture-proof, have a long anti-short-circuit life, and are paired with a senior technical team and rich project experience. The factory supplies products at high cost-effectiveness, with stable and fast delivery, providing one-stop logistics, technical guidance, and lifetime after-sales services. We are dedicated to serving global overseas customers.

Manufacturing Technique

Product packaging

Shipping Specifications
